656 La Paz

Miramar, Puerto Rico

A family of three (3) acquires an existing house to transform its dark, deplorable and disjointed state into their ‘dream’ residence.



Set in a small, narrow lot in the unique neighborhood of Miramar, where selective properties define a small historic area.  Not classified significant, lacking distinctive architectural features, the original structure dates from the 1920s.  It has suffered an unfortunate reconstruction/expansion in 1973 and then another tactless intervention in the 1980's when it was divided into two (2) separate units. Nonetheless, it's sound structural condition allows a sensitive metamorphosis - without opting for complete demolition.



Design:

  • Selective demolition with the intension of liberating interior spaces and site.

  • Reduce longitudinal mass, eliminating complete sections at extreme ends.

  • Open frames at the volume’s end – free of walls (cased only with doors/windows).

  • Maximize the orientation towards the exterior, particularly to the back patio/yard.

  • Permit light penetration, demolishing concrete carport and wood terrace at South facade.

  • Achieve optimum interior illumination and natural (East/West) ventilation.

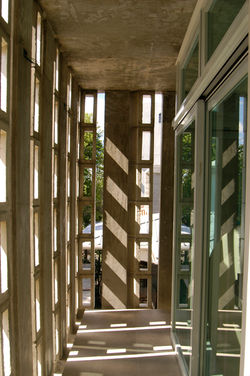

  • South facade reconfigured with concrete screen, which mitigates and filters light.

  • Main axis from entrance culminates at back patio/yard.

  • Vertical connection by means of new stair in central well - with skylight

  • Interior finishes reinforce illumination and continuity of spaces.



Principal Spaces:

A discreet entrance leads to the vestibule, living, dining (bedroom to one side), and at the extreme, the kitchen opens to this rectilinear space, as well as to back patio/yard.  Along this alignment, access to the second level with two (2) bedrooms, which share a living/family/library space, bordered by the new screen which acts a South-facing ‘balcony’.

Exterior Rendering

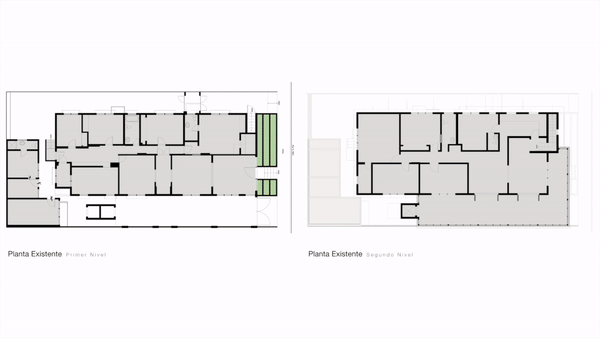

Project Process

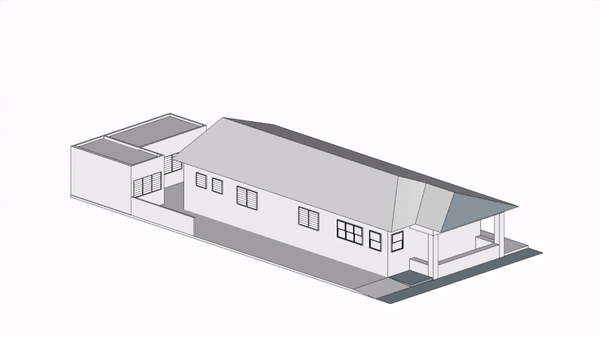

Project Process

First Level

Second Level

West Elevation

South Elevation

East Elevation

North Elevation

Section

Section

Section

Section

Interior Rendering

Interior Perspective

Interior Rendering

Interior Perspective

Interior Rendering

Interior Perspective

Interior Rendering

Interior Perspective

Exterior Rendering

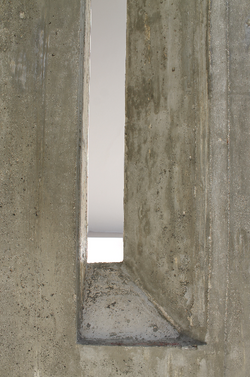

Blocks Details
